Name: Pro Excavator Enclosure
Brand: TIMSKY
SKU: PROEXCSTYL1XS
Price: 699.0 AUD
Availability: InStock

Work in comfort while protecting your machine

$699.00 AUD

Including GST

Machine Shape

Style 1

Style 2

Size

Extra Small

Small

Medium

QUANTITY

In stock

Find your size

Australian Owned

2 Year Warranty

Free Shipping Over $399*

[{"id":43540388872362,"title":"Style 1 \/ Extra Small","option1":"Style 1","option2":"Extra Small","option3":null,"sku":"PROEXCSTYL1XS","requires_shipping":true,"taxable":true,"featured_image":{"id":36464738369706,"product_id":7551894651050,"position":18,"created_at":"2023-07-12T10:53:43+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/IMG_9587.jpg?v=1764620403","variant_ids":[43540388872362]},"available":true,"name":"Pro Excavator Enclosure - Style 1 \/ Extra Small","public_title":"Style 1 \/ Extra Small","options":["Style 1","Extra Small"],"price":69900,"weight":10300,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608292","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29158328565930,"position":18,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/IMG_9587.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43540388905130,"title":"Style 1 \/ Small","option1":"Style 1","option2":"Small","option3":null,"sku":"PROEXCSTYL1S","requires_shipping":true,"taxable":true,"featured_image":{"id":36464830120106,"product_id":7551894651050,"position":7,"created_at":"2023-07-12T11:10:35+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/dlf-10.jpg?v=1764620403","variant_ids":[43540388905130]},"available":true,"name":"Pro Excavator Enclosure - Style 1 \/ Small","public_title":"Style 1 \/ Small","options":["Style 1","Small"],"price":69900,"weight":11400,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608308","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29158420414634,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/dlf-10.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43540388937898,"title":"Style 1 \/ Medium","option1":"Style 1","option2":"Medium","option3":null,"sku":"PROEXCSTYL1M","requires_shipping":true,"taxable":true,"featured_image":{"id":36464829989034,"product_id":7551894651050,"position":9,"created_at":"2023-07-12T11:10:35+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/dlf-7.jpg?v=1764620403","variant_ids":[43540388937898]},"available":true,"name":"Pro Excavator Enclosure - Style 1 \/ Medium","public_title":"Style 1 \/ Medium","options":["Style 1","Medium"],"price":69900,"weight":12000,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608315","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29158420545706,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/dlf-7.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44931954507946,"title":"Style 2 \/ Extra Small","option1":"Style 2","option2":"Extra Small","option3":null,"sku":"PROEXCSTYL2XS","requires_shipping":true,"taxable":true,"featured_image":{"id":36464741646506,"product_id":7551894651050,"position":8,"created_at":"2023-07-12T10:54:33+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL2E-12.jpg?v=1764620403","variant_ids":[44931954507946]},"available":true,"name":"Pro Excavator Enclosure - Style 2 \/ Extra Small","public_title":"Style 2 \/ Extra Small","options":["Style 2","Extra Small"],"price":69900,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608605","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29158331580586,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL2E-12.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44931954573482,"title":"Style 2 \/ Small","option1":"Style 2","option2":"Small","option3":null,"sku":"PROEXCSTYL2S","requires_shipping":true,"taxable":true,"featured_image":{"id":37074128568490,"product_id":7551894651050,"position":19,"created_at":"2023-11-21T09:22:35+11:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL7_22of27.jpg?v=1764620403","variant_ids":[44931954573482]},"available":true,"name":"Pro Excavator Enclosure - Style 2 \/ Small","public_title":"Style 2 \/ Small","options":["Style 2","Small"],"price":69900,"weight":10900,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608339","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29786801766570,"position":20,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL7_22of27.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44931954639018,"title":"Style 2 \/ Medium","option1":"Style 2","option2":"Medium","option3":null,"sku":"PROEXCSTYL2M","requires_shipping":true,"taxable":true,"featured_image":{"id":36793680199850,"product_id":7551894651050,"position":3,"created_at":"2023-09-22T12:32:59+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL6_8of37.jpg?v=1764620403","variant_ids":[44931954639018]},"available":true,"name":"Pro Excavator Enclosure - Style 2 \/ Medium","public_title":"Style 2 \/ Medium","options":["Style 2","Medium"],"price":69900,"weight":11500,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608346","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29497071403178,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/DL6_8of37.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":43540388872362,"title":"Style 1 \/ Extra Small","option1":"Style 1","option2":"Extra Small","option3":null,"sku":"PROEXCSTYL1XS","requires_shipping":true,"taxable":true,"featured_image":{"id":36464738369706,"product_id":7551894651050,"position":18,"created_at":"2023-07-12T10:53:43+10:00","updated_at":"2025-12-02T07:20:03+11:00","alt":"Pro Excavator Enclosure - Digger Lid","width":1000,"height":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/IMG_9587.jpg?v=1764620403","variant_ids":[43540388872362]},"available":true,"name":"Pro Excavator Enclosure - Style 1 \/ Extra Small","public_title":"Style 1 \/ Extra Small","options":["Style 1","Extra Small"],"price":69900,"weight":10300,"compare_at_price":null,"inventory_management":"shopify","barcode":"0659359608292","featured_media":{"alt":"Pro Excavator Enclosure - Digger Lid","id":29158328565930,"position":18,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/diggerlid.com\/cdn\/shop\/files\/IMG_9587.jpg?v=1764620403"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Keep working and keep earning with the DiggerLid PRO Enclosure.

Engineered to protect you and your machine from the harshest elements, our PRO Enclosure helps keep your projects on schedule.

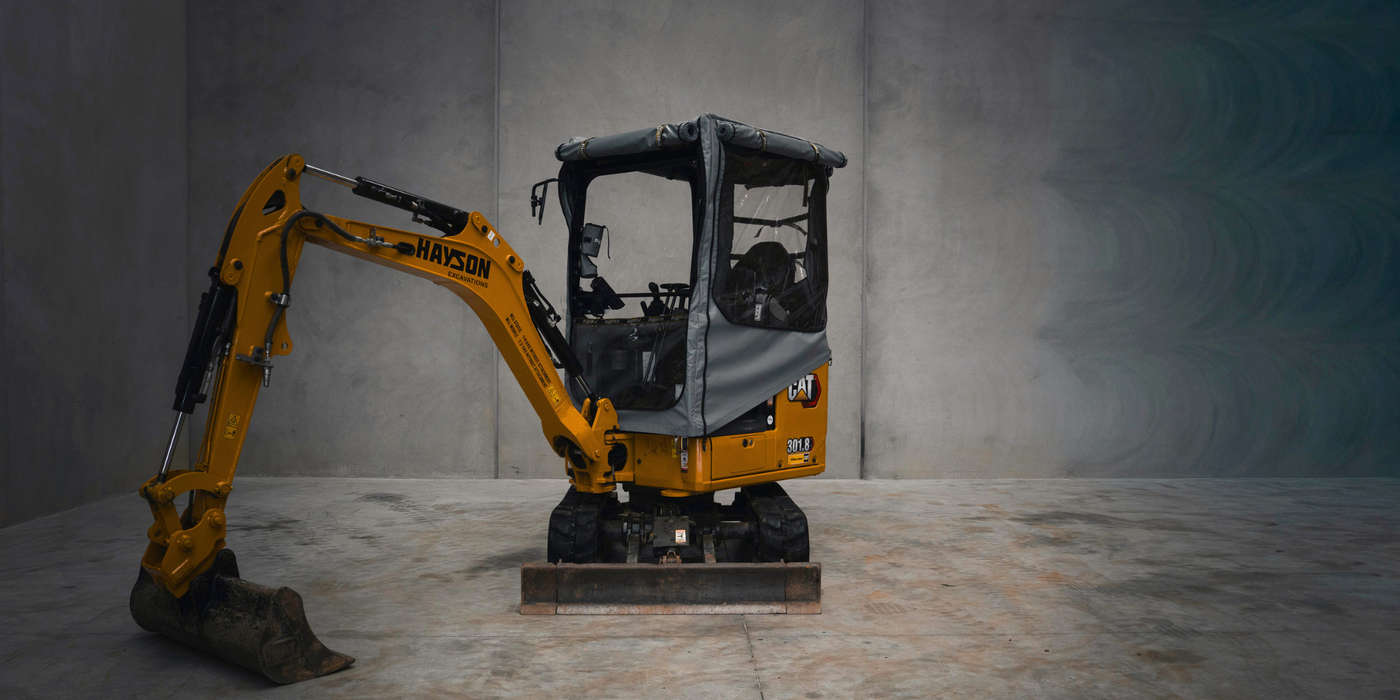

With windows on the left, right, rear and lower front panels, you can get more work done in comfort, while keeping your machine looking clean and professional. The open front (top) provides ventilation and unrestricted visibility of your blade and working area.

The PRO Enclosure is rugged and lightweight, making it ready for any job site. Built with 490 GSM PVC ripstop and trusted YKK hardware, the PRO Enclosure sets the standard for weather-beating excavator accessories.

Choose from 6 universal, adjustable sizes to suit over 200 models of mini excavators. Use the SIZE GUIDE below to find the best fit for your machine.

Specification

Dimensions below. See size guide page for quick fit chart or correct instructions and selection for unlisted excavators

Style 1 - Refers to machines where the the body (engine and counterweight) is flush and in-line with the ROPS canopy. In style 1 sizes, the length of the cover from top to bottom is longer at the rear/ right hand side.

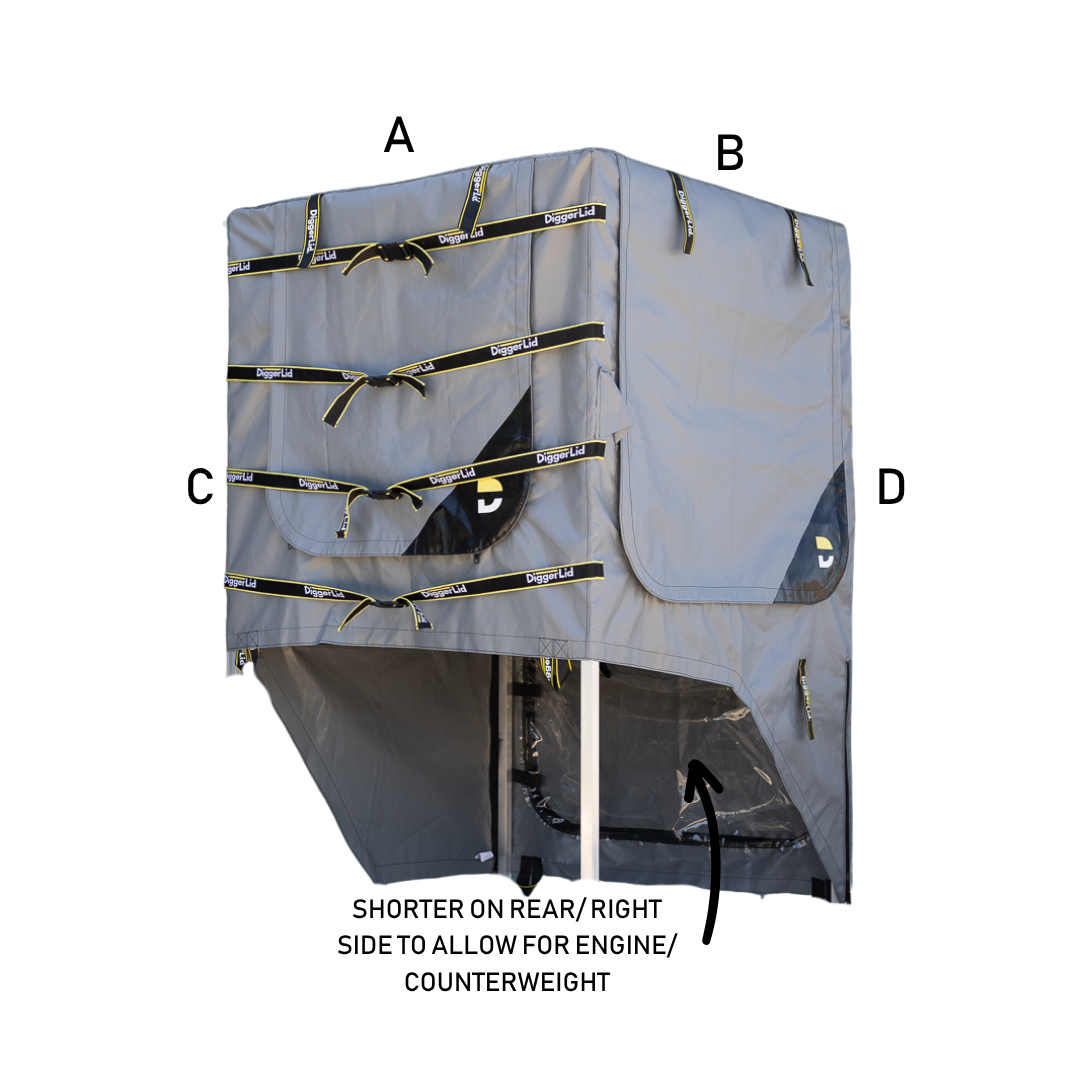

Style 2 - Refers to machines where the body (engine and counterweight) is larger than the ROPS canopy. In style 2 sizes, the length of the cover from top to bottom is shorter around the rear/ right hand side to allow for this.

Size - refers to the dimensions of the ROPS canopy itself (not the weight of the machine.
We gauge this by a wrap around measurement as explained in our video on the size guide page.

Max dimensions around the canopy:
Extra small = <3760mm or 12' 4"
Small = 3760 - 4180mm or 12'4" - 13'8 1/2"
Medium = 4180 - 4480mm or 13'8 1/2" - 14'8 3/8"

490 GSM PVC coated polyester ripstop grey material

Shipping

- Same day dispatch on orders before 12PM (AEST) (Australian Business days)
- All orders are provided with a tracking number. Please check your email at checkout.

AUSTRALIA:
FREE shipping on orders over $399*. Orders under $399 and/ or containing *KAJO Grease Packs are calculated by weight at checkout. Express option available

USA:
FREE shipping on orders over $399 USD. Import duties and tariffs are included in your final price (DDP).

REST OF WORLD:
FREE shipping on orders over $399 AUD. Import duties, VAT and tariffs are charged by your country on arrival (DAP).

Read our full Shipping Policy

Returns

- 30-day returns on full-price items, counted from the day you receive them
- Change of mind: items must be unused, clean and in their original packaging. A 10% restocking fee applies and you pay the return shipping.
- Wrong size? Unopened exchanges are replaced with new.
- Faulty, damaged in transit or sent the wrong item? We'll make it right at no cost to you. Your rights under the Australian Consumer Law always apply.
- To start a return, email info@diggerlid.com with your order number and the reason.

Read our full Refund Policy

FROM the cab

lukefromlid (verified)

coastal_concreting_creations (verified)

tjmexcavationservices (verified)

Features

Reliable

YKK zipper and buckle components for durability on site

Get more done

Our cover material is a 490 GSM PVC ripstop tarpaulin that will stand the test of time

Pays for itself

All stitching and velcro components are nylon to prevent deterioration in the harsh elements to protect your asset for longer

long term protection

Roll down window covers prevent sun exposure and condensation overnight/ storage

WHY GO PRO

The PRO enclosure keeps you and your mini excavator protected so you can work and earn more!

Canopy mini excavator with PRO enclosure

Unprotected mini excavator

Machine covered

Yes

Operator protected

Yes

Work on rain days

Yes

Schedule stays on track

Yes

Rugged - lightweight - proven

Yes

Not applicable

Removable

Yes

Not applicable

2 year warranty

Yes

Not applicable

Rated 4.71 overall by 1305 DigHeads

PRO ENCLOSURE SIZE guide

See size chart for known sizes or fitting instructions in the next section

STYLE 1

Extra Small

Small

Medium

Kubota U15, U17-3 & 5

Yanmar Vio17

Kobelco SK17SR

CAT 301.7 dcr OLDER MODEL

John Deere E18ZS & 17G

Wacker Neuson EZ17

Huski M-13K & M-16U

XCMG XE17u

Airman AX17U

Bobcat E17z, E20 & E20z

CAT 301.5 & 301.7 NEXT GEN

Doosan DX17z

Takeuchi TB215R & TB217R

Volvo ECR18E

Sany SY18

Sunward SWE18F

Kubota KX016, KX18, KX41-2V & KX41-3V

CAT 301.8 & 302CR NEXT GEN

Sany SY16

JCB 16C, 19C, 19CE

Bobcat E17 & E19 CONVENTIONAL SWING

Case CX17C

Hitachi ZX17U & ZX19U

New Holland E17c

Hyundai 18Z-9A

Komatsu PC18MR

JCB 18Z-1

STYLE 2

Extra Small

Small

Medium

Kubota U25

Kobelco SK20 & SK25

Yanmar Vio20 & Vio25

Kubota KX121, KX161, KX033, U27 & U35

Bobcat E35 & E45 OLDER MODELS

Hitachi ZX26U

John Deere 26G

XCMG XE27u (mirrors fold in for storage)

Bobcat E26, E30, E32 & E35 (R SERIES)

Wacker Neuson EZ25

CAT 302.7 & 303 NEXT GEN

John Deere 35G/P

Sany SY26U

Kobelco SK27, SK28 & SK30

Yanmar Vio30/35

Model Not Listed? See Fitting Instructions Below

Excavator MODEL NOT LISTED?

Follow the guide to find the best fit for your machine

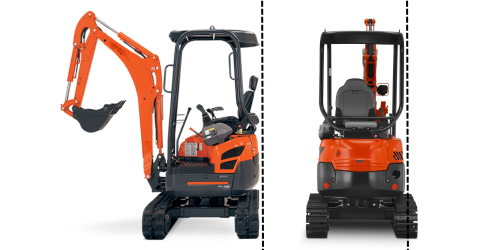

Style 1

The canopy and body are inline. The cover material on style 1 can hang down without interference

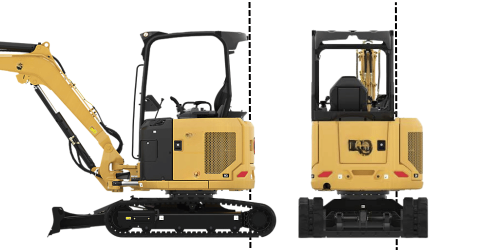

Style 2

Usually larger machines where the engine and/ or counterweight are bigger than the canopy (not in line). The cover material on style 2 is shorter to allow for this

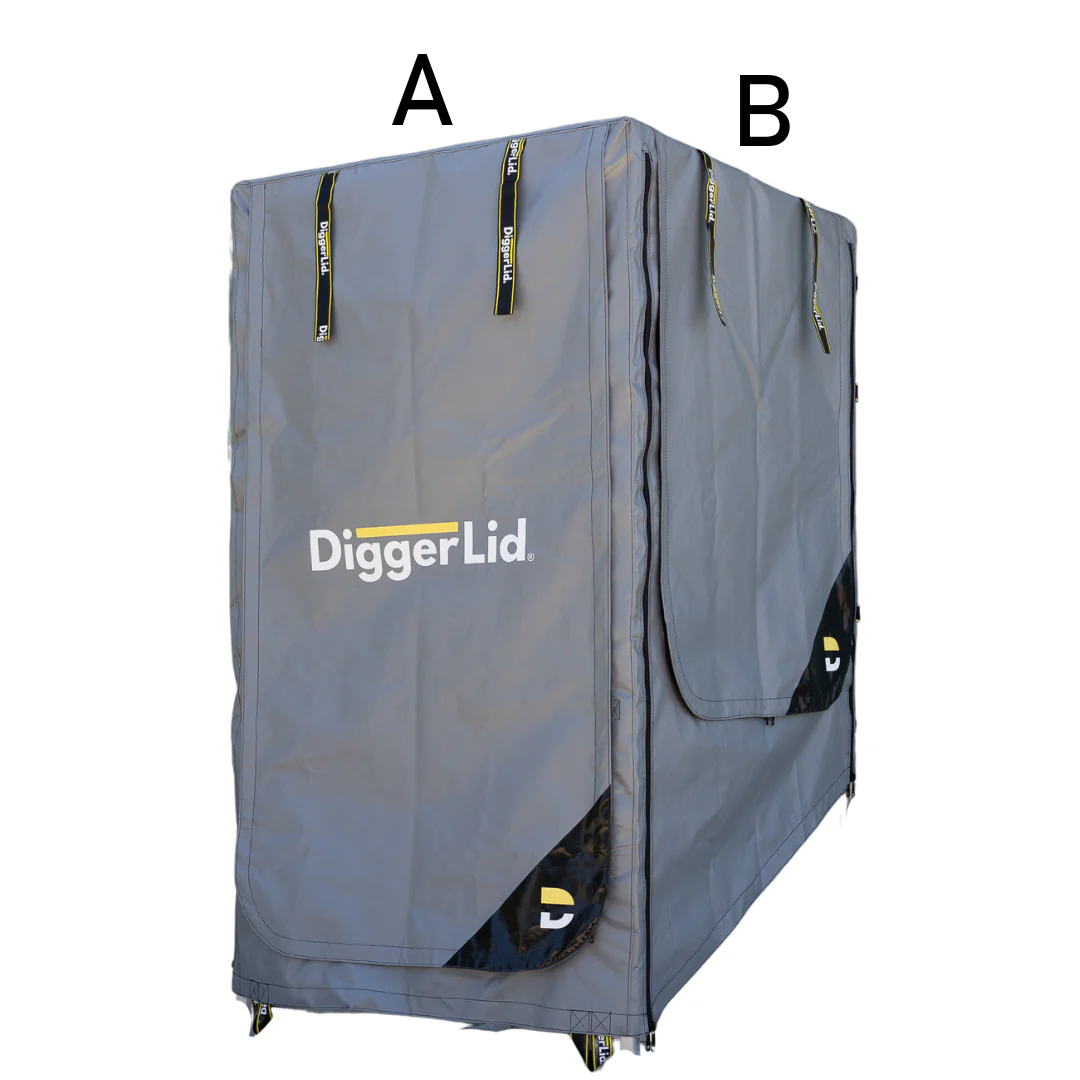

Carefully find the largest measurement required around the machine canopy accounting for any protruding components (mirrors or grab handles) and select the next size up. See examples tab for reference.

A: 900mm or 35 1/2"

B: 980mm or 38 1/2"

All 4 sides combined gives a total allowance around the canopy of up to 3760mm or 148"

A: 990mm or 39"

B: 1100mm or 43 1/4"

All 4 sides combined gives a total allowance around the canopy of up to 4180mm or 164 1/2"

A: 990mm or 39"

B: 1250mm or 49 1/4"

All 4 sides combined gives a total allowance around the canopy of up to 4480mm or 176 1/4".

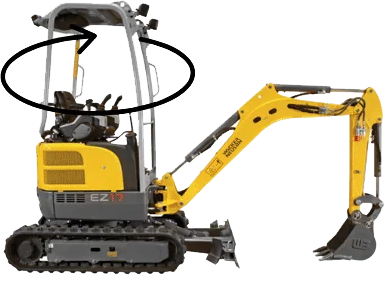

Example 1

As shown, the Wacker Neuson EZ17 is a style 1 because the canopy and body are inline and the cover material can hang all the way down.

When wrapping a tape around this machine, including the front grab handle and following the approximate shape of the roof, we find the measurement to be less than 3760mm (XS allows UP TO 3760mm).

By following the instructions, we can confirm this machine suits a style 1 — extra small.

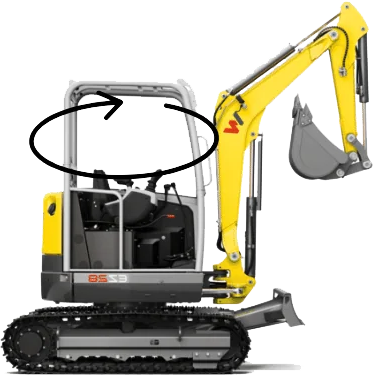

Example 2

As shown, the Wacker Neuson EZ26 is a style 2 because it is a larger machine where the engine and counterweight is larger than the canopy/ not in line.

When wrapping a tape around this machine including the front grab handle, we find the measurement to be more than 4180mm (S) but less than 4480mm (M).

By following the instructions, we can confirm this machine suits a style 2 — medium.

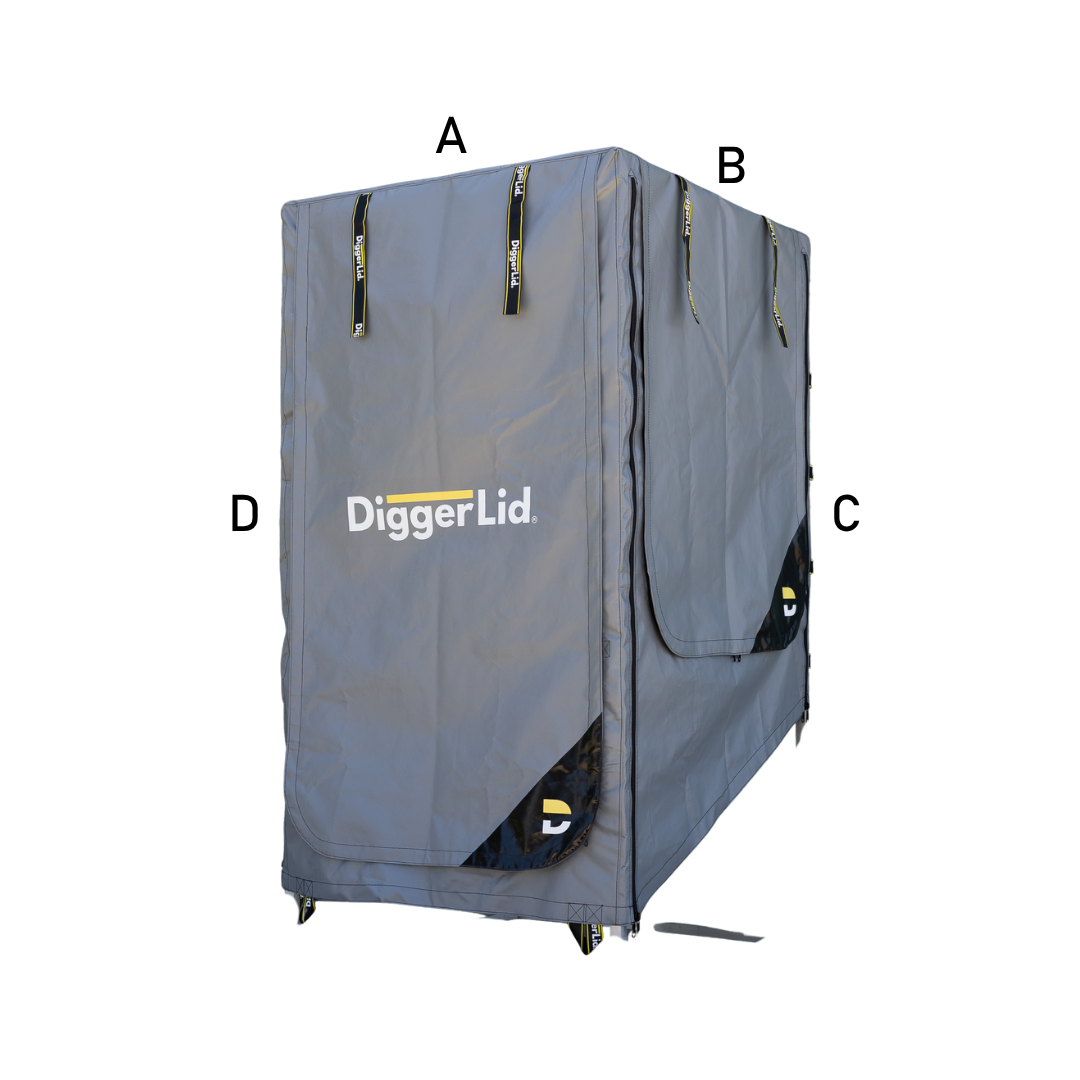

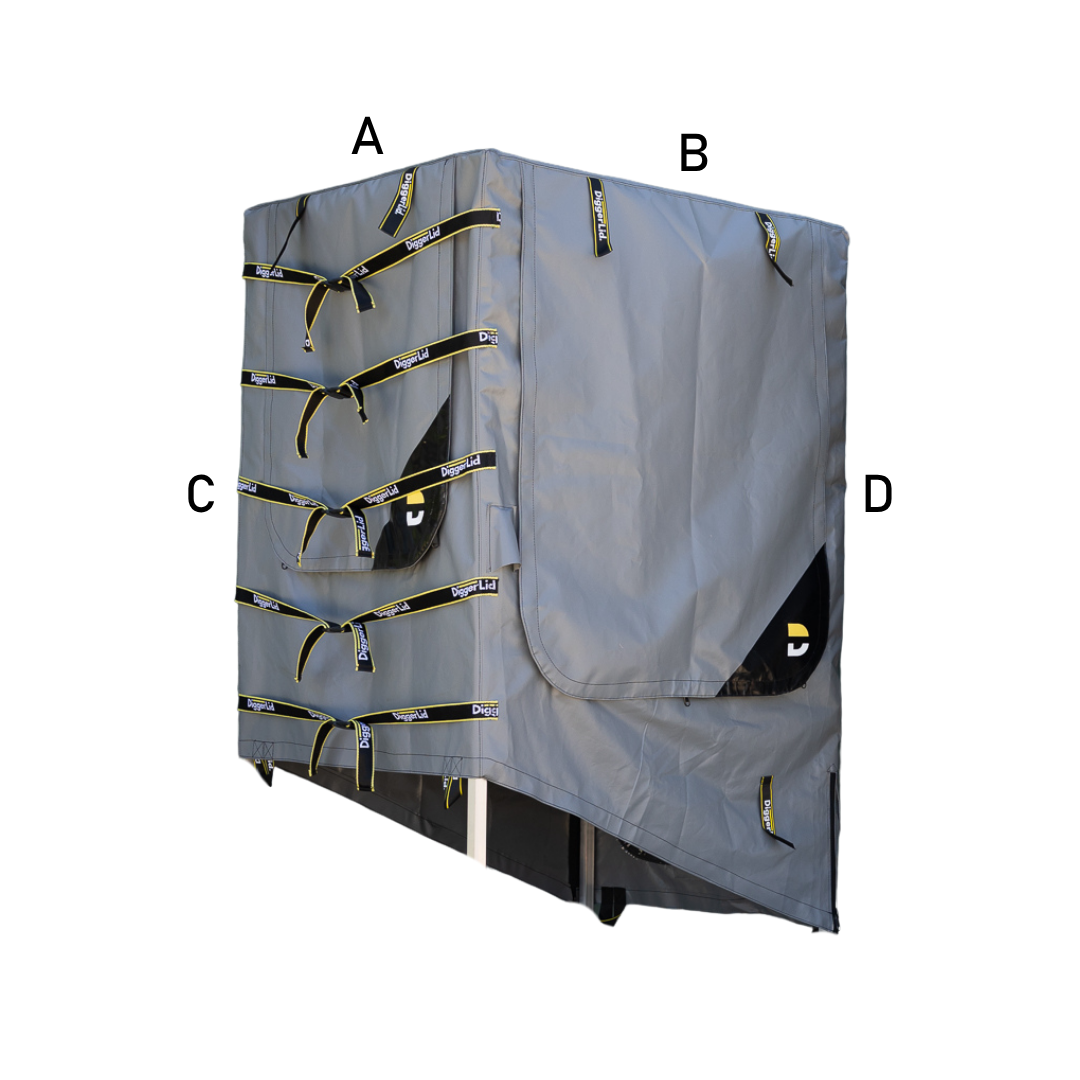

Size	A	B	C	D
Style 1 - XS	900mm or 35 1/2"	980mm or 38 1/2"	1200mm or 47 1/4"	1600mm or 63"
Style 1 - S	990mm or 39"	1100mm or 43 1/4"	1200mm or 47 1/4"	1600mm or 63"
Style 1 - M	990mm or 39"	1250mm or 49 1/4"	1150mm or 45 1/4"	1600mm or 63"
Style 2 - XS	900mm or 35 1/2"	980mm or 38 1/2"	1050mm or 41 1/4"	1600mm or 63"
Style 2 - S	990mm or 39"	1100mm or 43 1/4"	1000mm or 39 1/4"	1600mm or 63"
Style 2 - M	990mm or 39"	1250mm or 49 1/4"	1000mm or 39 1/4"	1600mm or 63"

Size	A	B	C	D
Style 1 - XS	900mm or 35 1/2"	980mm or 38 1/2"	1200mm or 47 1/4"	1600mm or 63"
Style 1 - S	990mm or 39"	1100mm or 43 1/4"	1200mm or 47 1/4"	1600mm or 63"
Style 1 - M	990mm or 39"	1250mm or 49 1/4"	1150mm or 45 1/4"	1600mm or 63"

Size	A	B	C	D
Style 2 - XS	900mm or 35 1/2"	980mm or 38 1/2"	1050mm or 41 1/4"	1600mm or 63"
Style 2 - S	990mm or 39"	1100mm or 43 1/4"	1000mm or 39 1/4"	1600mm or 63"
Style 2 - M	990mm or 39"	1250mm or 49 1/4"	1000mm or 39 1/4"	1600mm or 63"

A closer look

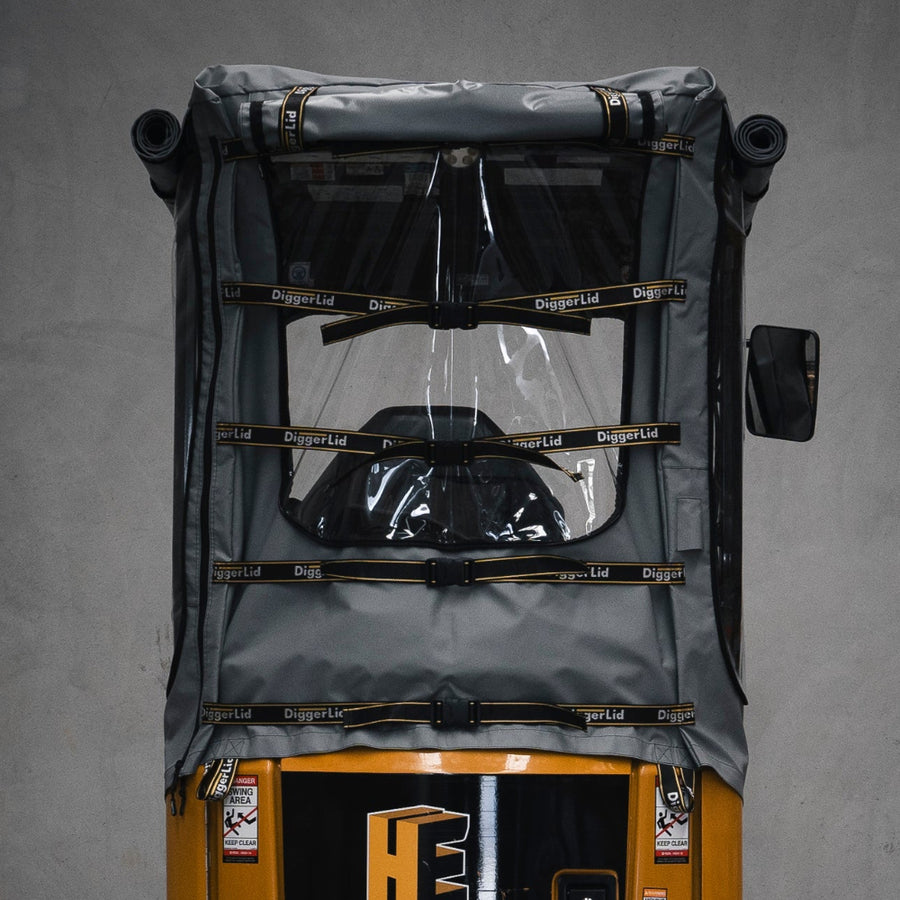

universal sizing 🔃

6 universal sizes suit over 200 makes & models of mini excavator. Tensioning straps, endless internal ROPS tethers & tie down loops keep your kit secure

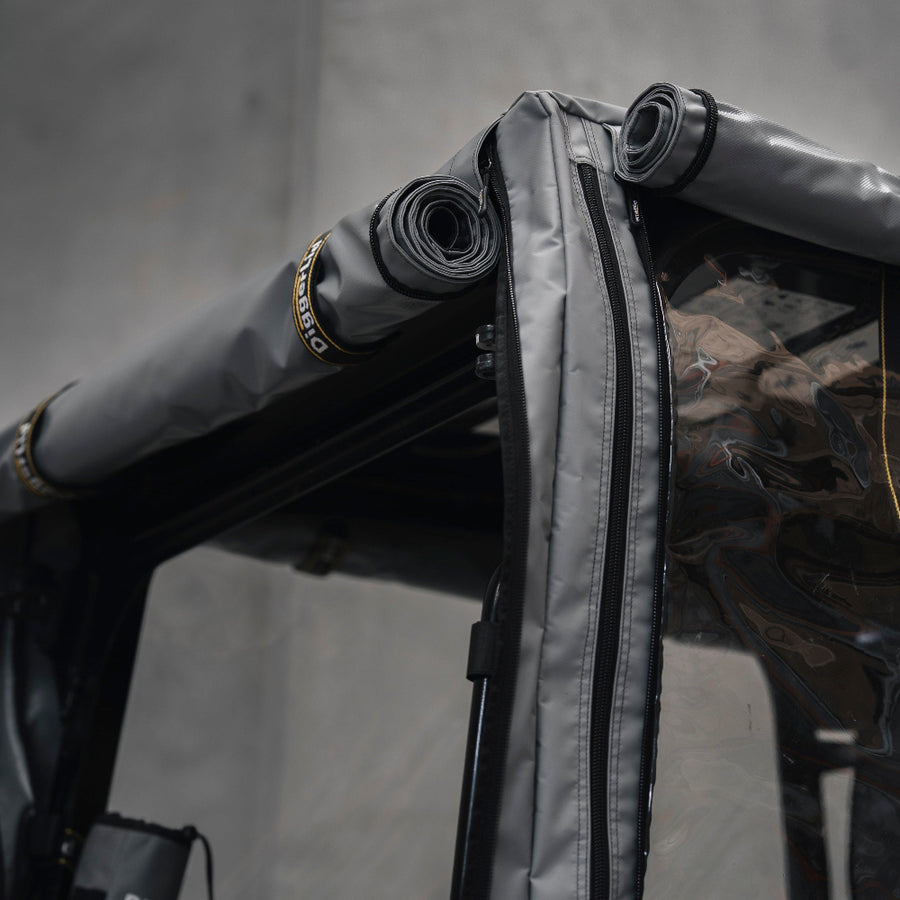

Stay Comfy & Dry 🔥

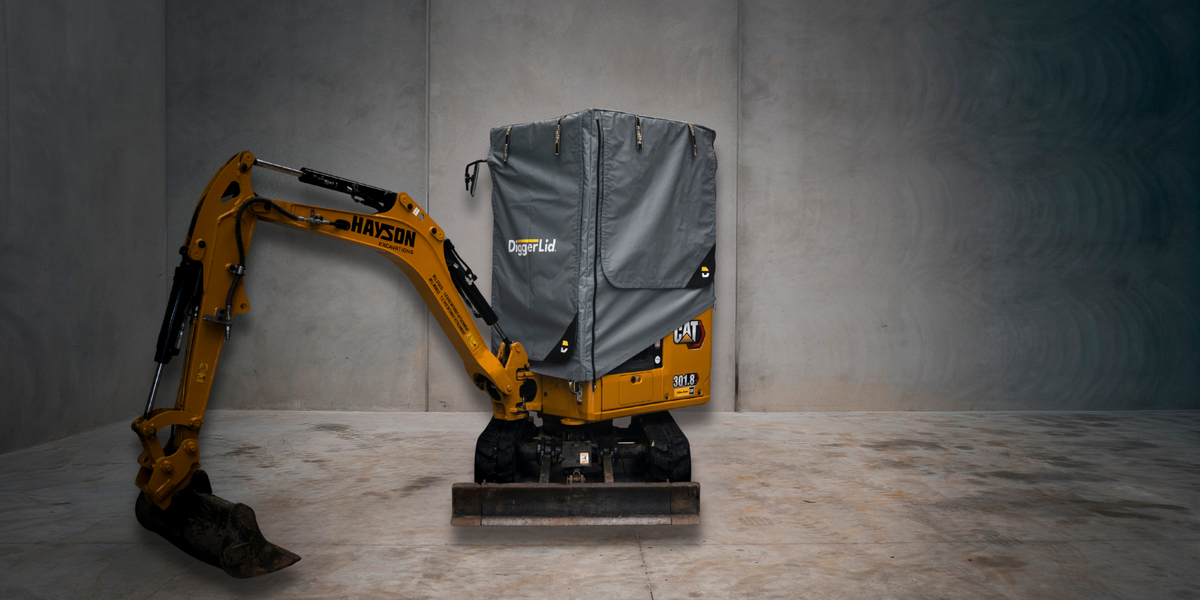

Block wind, rain and harsh elements from affecting you and your machine + close up for storage.

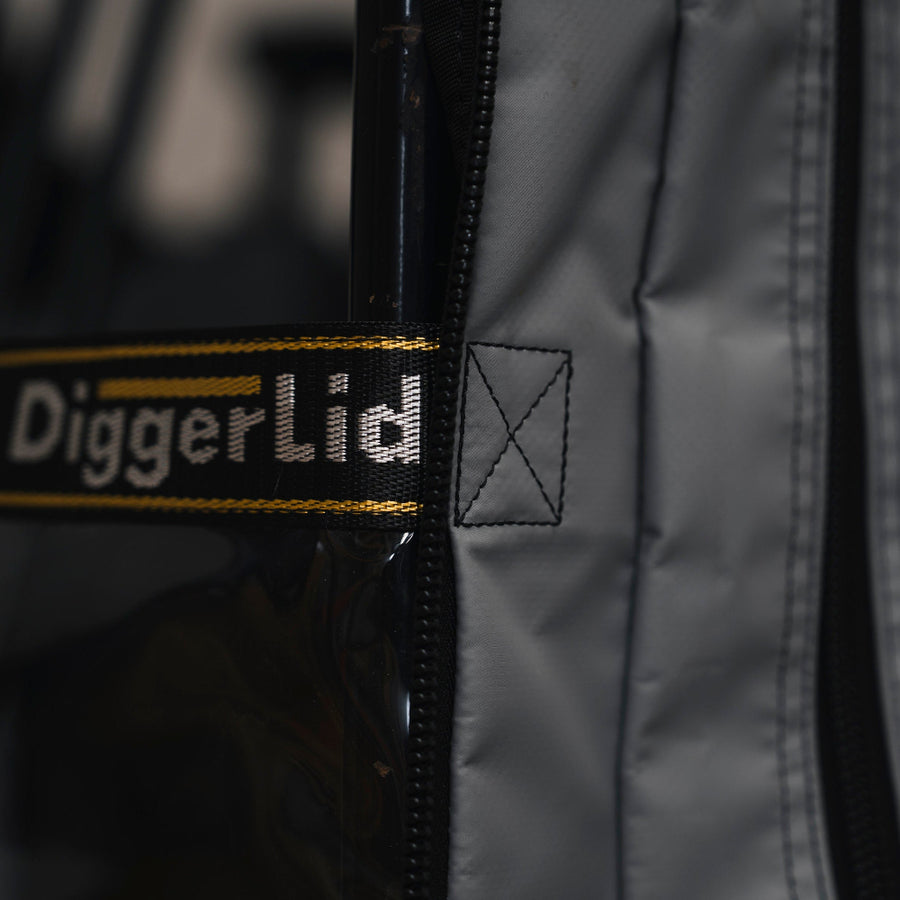

Trade tough 💪🏼

The PRO enclosure is rugged, sturdy & lightweight. Quality is our #1 - proven by our reviews!

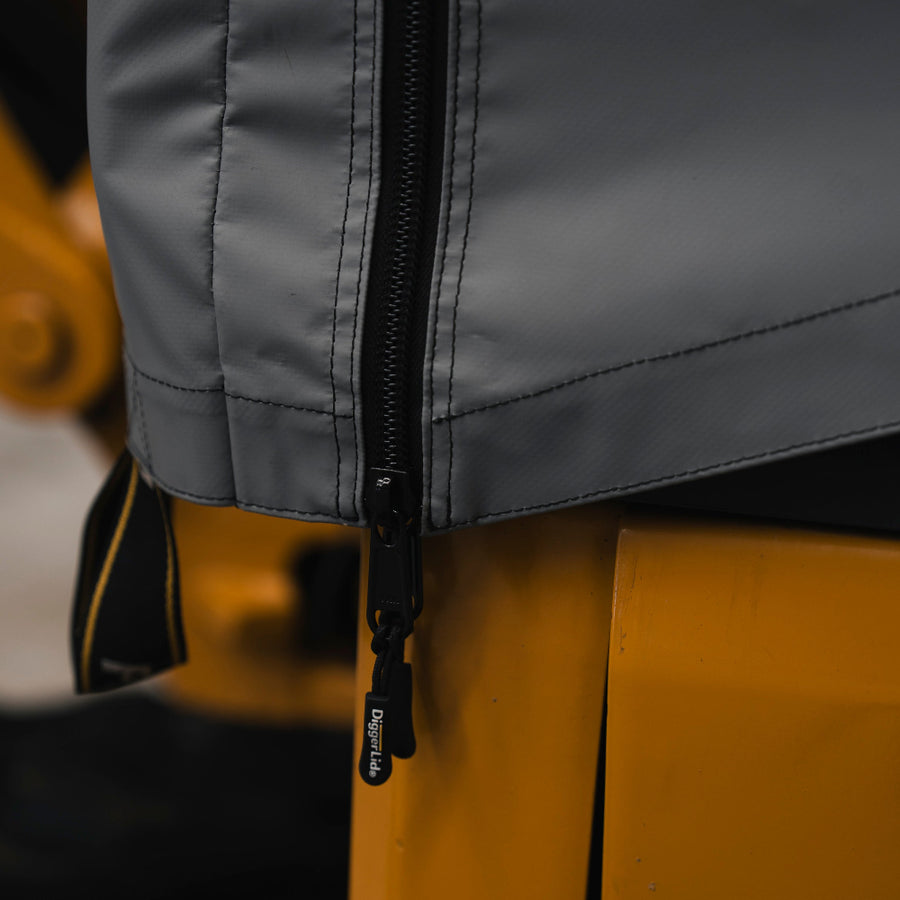

Simple & effective ✅

Install, hop-in, dig & make money in comfort. Close up, leave overnight, return to dry seat. Machine lasts longer!

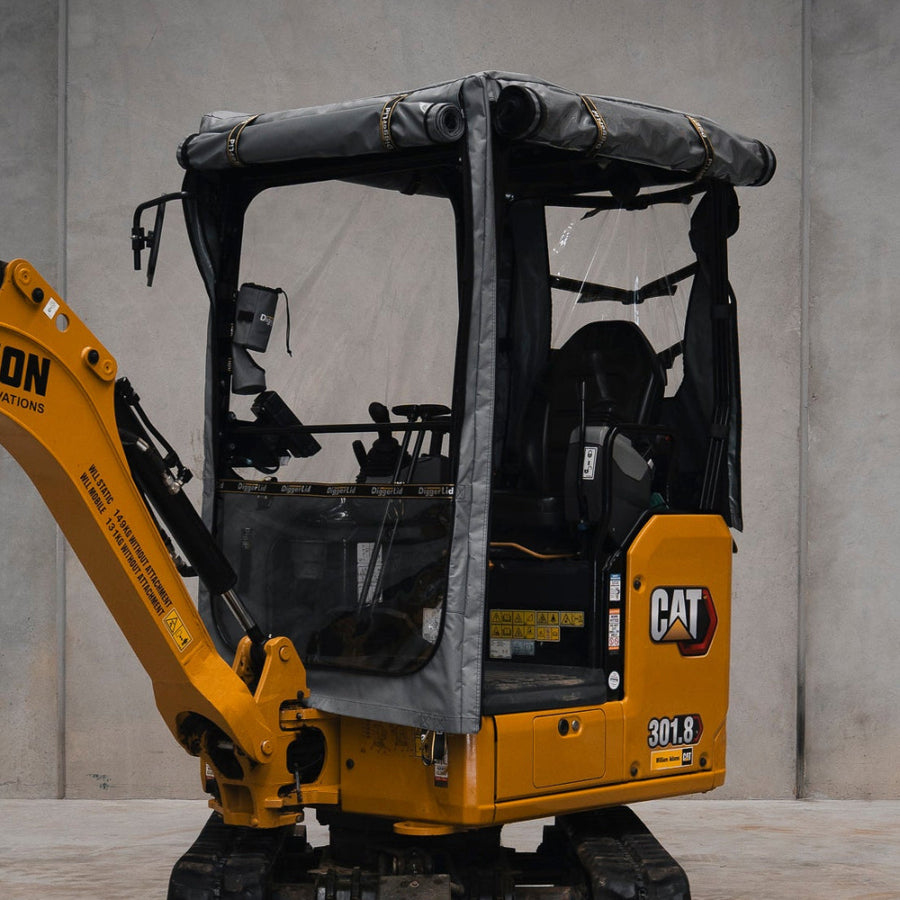

keep working & earning 💸

Cover up and stay protected from the weather. Earn more money working on days when you otherwise couldn't!

Frequently Asked Questions

We have a PRO Enclosure size guide available for mini excavators. This chart will lead you to a confirmed fit or show you how to find the closest fit for your machine. All products also have recommendations, description, dimensions and specs on page. still unsure? contact us today!

We know who uses our products and how they get used. We would only ever bring out high quality products for earthmovers. Our cover material is a heavy grade PVC sure to stand the test of time and our fixtures. We use only YKK Zippers, straps and buckles plus nylon stitching for outdoor durability. DiggerLid builds products trade tough to ensure a reliable product that will improve your creature comfort for many years.

Our rapidly growing range now fits over 200 machines so chances are we have a cover for you. We do not custom make covers to order, but we still encourage you to get in touch with us with your machine details & we will do our best to provide the solution.

Your best bet is to check the full range across our website. If nothing you desire is there, the best thing to do is ASK. We save every enquiry and with more interest comes a bigger range. A solution for you may just be on the horizon!

Absolutely. Our business contact number is 1300 661 881. You can also message our live chat or send an email to info@diggerlid.com - Get in touch with us today!
